Structure

A SOM is formed of neurons located on a regular, usually 1- or 2-dimensional grid. Each neuron i of the SOM is represented by an n-dimensional weight or reference vector tex2html_wrap_inline3190 , where n is equal to the dimension of the input vectors. Higher dimensional grids can but they are not generally used since their visualization is much more problematic. Usually the map topology is a rectangle but also toroidal topologies have been used succesfully.

The neurons of the map are connected to adjacent neurons by a neighborhood relation dictating the structure of the map. Immediate neighbors, the neurons that are adjacent, belong to the 1-neighborhood tex2html_wrap_inline3194 of the neuron i. In the 2-dimensional case the neurons of the map can be arranged either on a rectangular or a hexagonal lattice. Neighborhoods of different sizes in rectangular and hexagonal lattices are illustrated in figure 2.1. The number of neurons determines the granularity of the resulting mapping, which affects the accuracy and the generalization capability of the SOM.


grids

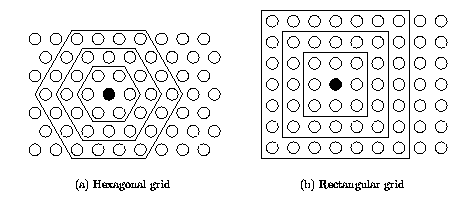

Figure 2.1: Neighborhoods (size 1, 2 and 3) of the unit marked with black dot: (a) hexagonal lattice, (b) rectangular lattice. The innermost polygon corresponds to 1-neighborhood, the second to the 2-neighborhood and the biggest to the 3-neighborhood.
