Signals Browser

Import a signal, activate the variable (e.g. sig1) in the leftmost list box in the main GUI and press the corresponding View button. The signal can be zoomed in and out, see the figure 2.

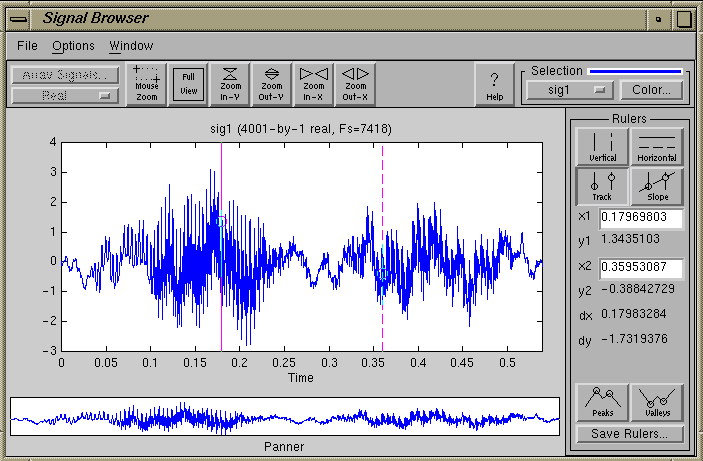

Figure 2: Signal Browser.
