TIME SERIES PREDICTION
The project in neural computing is done by using the MATLAB program
[2,3,4] with some extension functions for neural computing. The
extension functions used for neural computing are a software package
called Neural Network Toolbox [5]. The project can be done
by using any computer with MATLAB and Neural Network Toolbox (which is
a set of MATLABfunctions). MATLAB and Neural Network Toolbox are
installed at workstations in Maarintalo. The manuals of the toolbox
can also be found in Maarintalo administration.
The file containing the time series can be found
here or at Maarintalo workstations
in directory /p/edu/tik61.170/neural/timeser.
If someone needs an ASCII version of the data, it can be found here.
Name of the file
containing the time series in MATLABformat (binary) is ts.mat
(the name of the vector in MATLAB is ts).
In the project, the time series is predicted by using some preceding
values to predict the next value of the time series (for example 3
preceding values). A part of the time series is selected to be the
training set (in maximum half of the time series) and the other part
is used for testing the network. A 2 and 3layer multilayer
perceptron (MLP) [1] network are then trained to predict the next
value of the time series by using the preceding values as input. The
training algorithm used here is backpropagation [1]. Try at least
with four different networks with different amount of layers (2 and 3)
and with different amounts of hidden layer neurons. Do these changes
have effect on the learning rate and the final error?
Compare also different training functions (at least 2). Are there any differences?

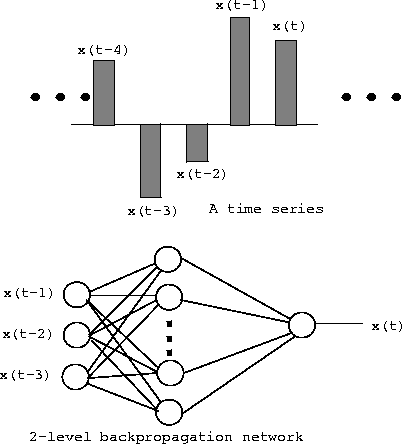

Figure 1:
A neural network for predicting a time series

The report begins with a cover page including course code, course
name, name of the exercise (time series prediction), your name, your
department, your email address, student number and return date. In
the report, the chosen networks and their parameters are described and
reasoned. The predicting results are presented for the training set
and for the test set. One way to present the results is to plot the
original time series and the predicted time series in the same figure
(different figures for the training set and the test set). A shorter
period of time series is recommended to be printed (for example 100
points) to keep the figures clear. Calculate also the relative error
for the training set, the test set and for the whole time series. The
relative error is defined using error and
``correct signal'' variances:
where e is error and x is the correct signal. The MATLABcodes
used for the project should be appended to the report. The
MATLABcodes should be clearly commented and readable.
 1
 S. Haykin. Neural Networks  a Comprehensive Foundation, PrenticeHall 1998
 2
 S.K. Kivelä. MATLABopas, 2nd edition 1988
 3
 A Prewiev of MATLAB, The Math Works Inc. 1989
 4
 C. Moler et al. PCMATLAB User's Guide, The Math Works Inc. 1987
 5
 Neural Network Toolbox User's Manual, The Math Works Inc. 1992
